05. Resolving Collisions

Ok, we can detect collisions. Now it's time to deal with how our objects react on them, i.e. with the collision resolution.

碰撞已经能检测了。现在要处理的是对象如何对碰撞作出反应，也就是碰撞的处理（collision resolution）。

When two objects overlap, it turns out convenient to return from the collisions.check_rectangles_overlap not only the fact of the overlap but also a displacement necessary to resolve the overlap. I suppose that the shape b is the one that has to be displaced, and the a should remain in place. If the center of the b is to the right from the center of the a, the b is shifted right to resolve the overlap, in the other case - left ( shift is negative ). Same for y-axis.

当两个对象重叠时，仅返回“是否重叠”还不够，最好还能返回一个“需要移动多少才能解除重叠”的位移值。这里我假设 b 需要移动，而 a 保持不动。如果 b 的中心在 a 的中心右侧，那么 b 就向右移动来消除重叠；反之则向左（位移为负）。y 轴方向也是同理。

lua

function collisions.check_rectangles_overlap( a, b )
   local overlap = false
   local shift_b_x, shift_b_y = 0, 0
   if not( a.x + a.width < b.x  or b.x + b.width < a.x  or
           a.y + a.height < b.y or b.y + b.height < a.y ) then
      overlap = true
      if ( a.x + a.width / 2 ) < ( b.x + b.width / 2 ) then
         shift_b_x = ( a.x + a.width ) - b.x                    --(*1a)
      else
         shift_b_x = a.x - ( b.x + b.width )                    --(*1b)
      end
      if ( a.y + a.height / 2 ) < ( b.y + b.height / 2 ) then
         shift_b_y = ( a.y + a.height ) - b.y                   --(*2)
      else
         shift_b_y = a.y - ( b.y + b.height )                   --(*2)
      end
   end
   return overlap, shift_b_x, shift_b_y                         --(*3)
end

(*1a): b to the right from the center of a; shift b to the right
(*1b): b to the left from a; shift to the left.
(*2): same for y axis.
(*3): shift is returned along with the fact of the overlap

(*1a)：b 在 a 的中心右侧，把 b 向右移动。
(*1b)：b 在 a 左侧，把 b 向左移动。
(*2)：y 轴同理。
(*3)：除了是否重叠之外，还返回位移量。

Now, in collision-resolution functions we need to check for overlap, and if it happens - react on in. For platform-ball collision, there is no need to modify the platform, but it is necessary to change the ball direction. ball.rebound is responsible for this.

现在在碰撞处理函数里，我们需要检查是否重叠，并在发生重叠时做出响应。以平台-球碰撞为例：平台本身不需要动，但球的方向必须改变。这个处理由 ball.rebound 来完成。

lua

function collisions.ball_platform_collision( ball, platform )
   local overlap, shift_ball_x, shift_ball_y
   local a = { x = platform.position_x,
               y = platform.position_y,
               width = platform.width,
               height = platform.height }
   local b = { x = ball.position_x - ball.radius,
               y = ball.position_y - ball.radius,
               width = 2 * ball.radius,
               height = 2 * ball.radius }
   overlap, shift_ball_x, shift_ball_y =
      collisions.check_rectangles_overlap( a, b )
   if overlap then
      ball.rebound( shift_ball_x, shift_ball_y )       --(*1)
   end
end

(*1): if there is an overlap between the ball and the platform, make ball rebound.

(*1)：如果球和平台发生重叠，就让球反弹。

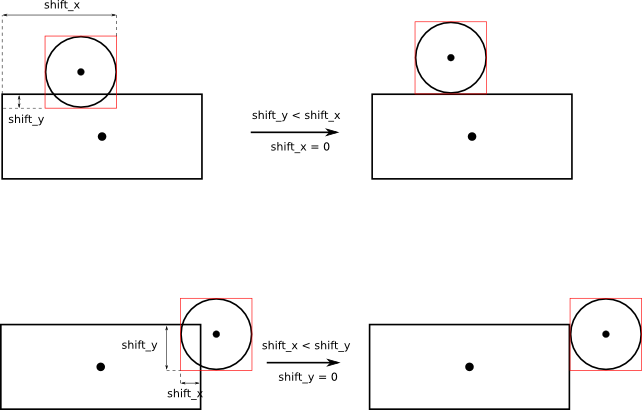

In ball.rebound function the overlap values are passed. I determine the minimal one of them, zero the other one and shift the ball by the nonzero value (see the figure; todo: redraw it). Besides, the speed direction along the shift axis is reversed.

在 ball.rebound 函数里会传入重叠位移。我会取两者中的较小值，把另一项置为 0，然后让球沿非零方向移动（见图；待重绘）。同时，沿着移动方向的速度也要反向。

lua

function ball.rebound( shift_ball )
   local min_shift = math.min( math.abs( shift_ball.x ),
                               math.abs( shift_ball.y ) )
   if math.abs( shift_ball.x ) == min_shift then
      shift_ball.y = 0
   else
      shift_ball.x = 0
   end
   ball.position = ball.position + shift_ball
   if shift_ball.x ~= 0 then
      ball.speed.x = -ball.speed.x
   end
   if shift_ball.y ~= 0 then
      ball.speed.y = -ball.speed.y
   end
end

Ball-wall collisions are resolved in a similar fashion. Platform-wall is the same, but there is no need to change the velocity of the platform.

球-墙的碰撞处理方式类似。平台-墙也是一样，只是平台的速度不需要反向。

For the ball-brick collision it is necessary to delete the brick on collision. Brick reaction on the collision is described by bricks.brick_hit_by_ball function. For now, the only reaction is to remove the brick from the bricks.current_level_bricks table. This is done by executing table.remove. To implement this, it is necessary to pass the index of the brick into bricks.current_level_bricks.

球-砖块碰撞时需要把砖块删除。砖块对碰撞的反应由 bricks.brick_hit_by_ball 函数描述。目前唯一的反应就是把砖块从 bricks.current_level_bricks 表里移除，这可以通过 table.remove 实现。为此，需要把砖块在表中的索引传进去。

lua

function collisions.ball_bricks_collision( ball, bricks )
   local overlap, shift_ball_x, shift_ball_y
   .....
   for i, brick in pairs( bricks.current_level_bricks ) do
      .....
      overlap, shift_ball_x, shift_ball_y =
         collisions.check_rectangles_overlap( a, b )
      if overlap then
         ball.rebound( shift_ball_x, shift_ball_y )
         bricks.brick_hit_by_ball( i, brick,                     --(*1)
                                   shift_ball_x, shift_ball_y )
      end
   end
end

function bricks.brick_hit_by_ball( i, brick, shift_ball_x, shift_ball_y )
   table.remove( bricks.current_level_bricks, i )                --(*2)
end

(*1): brick reaction on the collision is stored in the bricks.brick_hit_by_ball function.
(*2): brick is removed from the bricks.current_level_bricks

(*1)：砖块的碰撞反应放在 bricks.brick_hit_by_ball 函数里。
(*2)：从 bricks.current_level_bricks 里移除该砖块。
